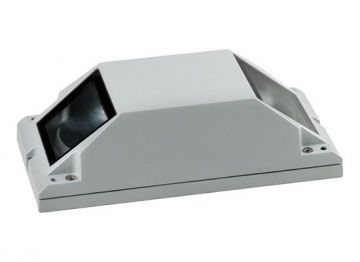

Meyer Arclux Mini

MARC-M

LEDs - 2 x 2W High Performance LEDs
Output – 180 lm | 4 W | 45 lm/W
LED Color - 3000K, 4000K, Single Color Blue
Electrical - 120V Integral Driver
CRI - 80+
Compliance – IP 67 Rated & IK08 Rated
Warranty - 3 Year Limited Warranty

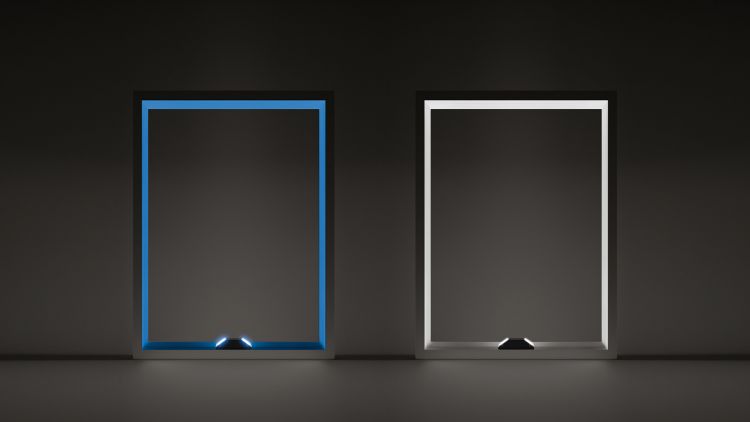

The Arclux Mini takes the features of the original Arclux luminaire and reduces its size. Using an efficient dual LED optical system, it creates a uniform arc of light to accent window reveals.

The light from two LEDs is directed from opposite sides of the luminaire, via specially developed reflectors, onto the window reveal. This results in a uniform arc of light, illuminating a window perfectly with a single luminaire.

Features:

• A complete window reveal can be illuminated using one luminaire.

• Light from two LEDs is directed from opposite sides of the luminaire via proprietary reflectors.
