Meyer Monospot 3

MONO3

LEDs - 1 x 28W High Performance LEDs
Optics - 9° Narrow | 30° Medium | 53° Wide Beam | 36° x 9° Linear Vertical | 9° x 36° Linear Horizontal | 36° x 9° Linear Rotatable | Vario Optic 11°- 48° Beam Angle | Street Optic 51°- 121° Batwing Distribution
Output - 4260 lm | 28W | 120 lm/W
LED Color - 3000K - 4000K
Electrical - 120-277V Integral Driver
CRI - 80+
Compliance - ETL Listed, IP65 and IK08 Rated
Warranty - 3 Year Limited Warranty

The Monospot 3 is the most unique of the high-performance, minimalist design Monospot series. With no visible hardware, the innovative design and dimensions allow these luminaires to be easily integrated into any architectural setting.

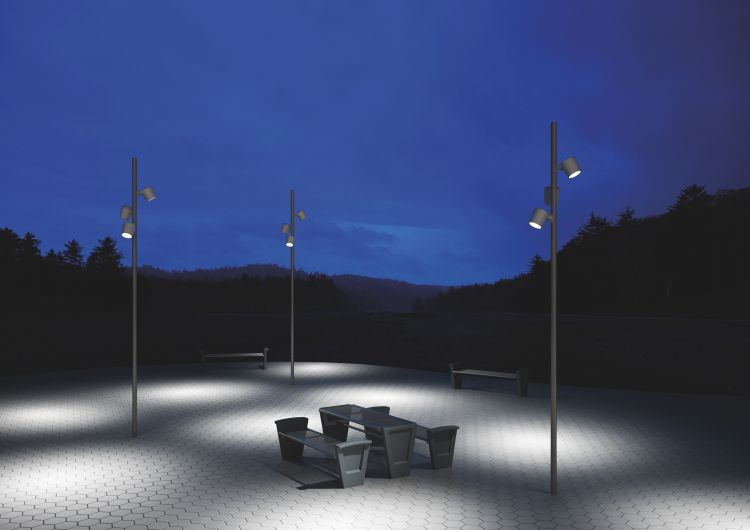

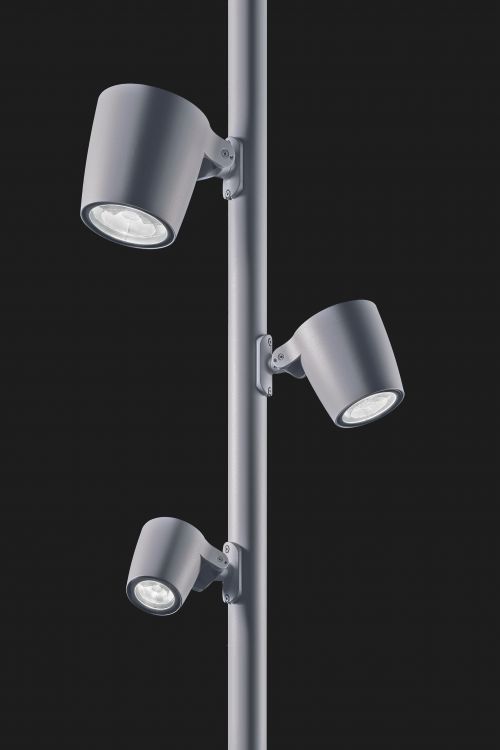

Mounting options include a bracket, pole mount, or a stainless-steel earth spike. The pole mount luminaires are equipped with a tilt-and-turn fixing system that allows a 90° tilt range and 360° swivel range.

The Vario Optic option allows the light beam to be adjusted between 11° to 48° while the fixture is installed and operating.
